Ball seat air tightness test chamber

QR code
类型 Automobile ball head testing machine
保修期 1 year
产地 Chinese mainland
型号 WSD-8836
Product detailsProduct review(0)

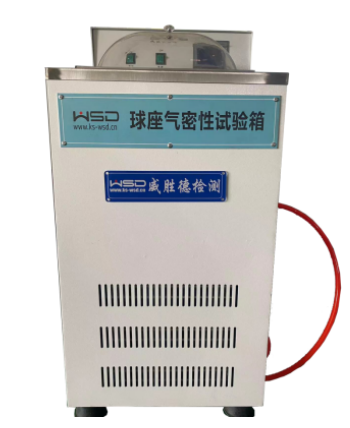

WSD-8836 ball seat air tightness test chamber

1. Scope of use:

It is mainly used to test whether there is leakage in the ball seat under the test conditions of a certain temperature and a certain air pressure, by completely soaking in low temperature or high temperature liquid. Provide the basis for manufacturers to improve.

The thermostatic tank is widely used in petroleum, chemical industry, electronic instrumentation, physics, chemistry, biological engineering, medicine and health, life science, light industrial food, physical property testing and chemical analysis and other research departments, colleges and universities, enterprise quality inspection and production departments, to provide users with a hot and cold controlled, uniform and constant temperature field source. Constant temperature testing or testing of test samples or produced products can also be used as a heat or cold source for direct heating or cooling and auxiliary heating or cooling

Three, the main technical indicators:

1) Control mode :7 inch color touch screen control

2) Test air pressure: 0-- 8bar can be set (Japan SMC proportional valve automatic adjustment)

3) Test time: 0-- 999S can be set

4) Sink temperature control range: -**℃~+**℃

5) Temperature resolution: 0.1℃

6) Use medium: ethylene glycol

7) Tank volume: 300*300*280mm

8) There is an observation window on the top surface of the working groove to observe whether there is leakage after the specimen is ventilated, and there is a transparent plexiglass cover above to observe whether there is leakage of the specimen.

9) Working slot opening: 230*210mm, depth: 280mm

10) Fully closed compressor refrigeration, refrigeration system with overheating, overcurrent multiple protection devices

11) Using analog digital PID automatic control system, temperature digital display

12) The inner liner and table are all 304 stainless steel, clean and hygienic, beautiful and corrosion resistant

13) Power supply voltage: AC220V±10%

14) The machine comes with air pressure: 9bar (piston air compressor)
