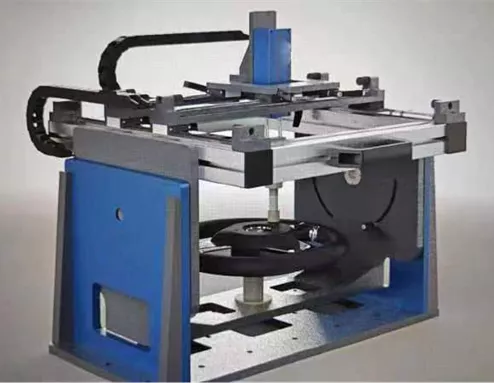

Steering wheel button fatigue tester

I. Scope of use;

Simulate manual press the steering wheel horn, and carry out a certain number of durability tests on the button. It provides a basis for manufacturers to test whether the product design is reasonable.

Ii. Based on standards;

Designed according to customer given standards

Iii. Technical parameters;

Number of stations: single station (multiple stations can be customized)

Test times: 0-999999 times

Power supply: single-phase AC220V, 0.5kW;

Power source: electric cylinder loading

Control mode: Delta 7 inch color touch screen and PLC control

Force sensor accuracy: ≤1%

Sensor resolution: 1/10000

Power sensor brand: American Chuanshi or Shi Quan

Servo motor brand: Japan Panasonic

Stop mode: The test piece breaks the system or automatically stops beyond the displacement

Operation interface display mode: all Chinese, all digital display

Four. Product advantages:

1. Use servo electric cylinder for action control, high control accuracy; Electric cylinder loading position and loading Angle can be adjusted;

2. Parameters can be set: press break time, number of tests, display test load, number of cycles, peak load, etc

3. Unattended: test interruption, reach the set number of times, horn failure automatic alarm stop

4. The main body of the machine is a steel component with high strength and is not easy to deform.

5. The base of the machine is solid steel with good stability, equipped with reinforcing bars and flat feet for water transfer.

6. Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance.

7. Control box: The machine and the control box are separated. It can be placed in a safer place to prevent the operator from being injured when the object falls.

V. Equipment details:

² One host

² One electric control box

² One copy of instructions

² One certificate of qualification

² One warranty card
